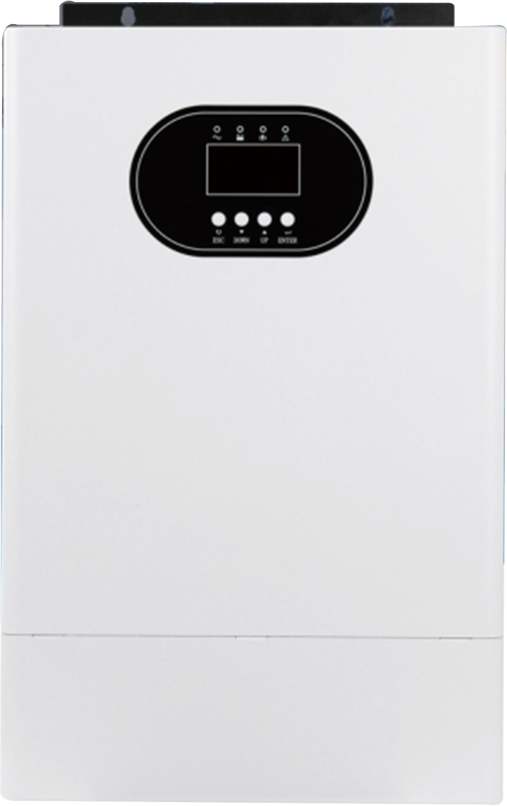

6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter

Product Categories

Shenzhen Junext Power Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 62KVA Solar Inverter 10200VA 160A Solar Storage Inverter
Brand: junext
Price: 1 USD

Brand Name : junext

Model Number : JN-E-SUN 6.2KVA

Place of Origin : shenzhen,guangdong

Contact Now

JN-E-SUN 6.2KVA

Product Parameters

New Model	JN-E-SUN 10.2KVA/48V
Max.PV Power	10200W
Rated Power	10200VA
Max.Charge Current	160A
Battery
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
Battery Type	Compatible With GEL,AGM,Lithium battery
Grid Input
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode)	98%
Ac Output
AC Voltage Regulation(Batt.Mode)	230 VAC 士 5%
Surge Power	20400VA
Efficiency (Peak)	90%-94%
Transfer Time	10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform	Pure sine mave
Dual Loads Acoutput
Full Load	10200VA
Maximum Main Load	10200VA
Maximum Second Load(Battery Mode)	3400W
Main Load Cut Off Voltage	44VCD
Main Load Retum Voltage	54VCD
Solar Charger&Ac Charger
Solar ChargerType	MPPT
Maximum PV Array Power	5400W*2
Max. input Current	18A
MPPT Range @ Operating Voltage	90-450VDC
Maximum PV Aray Open Circuit Vollage	500 VDC
Maximum Solar Charge Current	160A
Maximum Ac Charge Curent	140A
Maximum Charge Curent	160A
Physical
Packing Dimension,DWH(mm)	700510232
Net Weight (kg)	19.1
Communication interface	USBIRS232/WIFI/GPRS
Operating Environment
Humidity	5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature	-10℃ to 50℃
Storage Temperature	-10℃ to 50℃
